Ⅰ、A General Introduction
XDX-8 Hydraulic Core Drilling Rig ,is a thoroughly new-typed drilling rig developed on the basis of the advanced techniques in the world.XDX-8 is reasonable in design,compact in structure, excellent in performance, easy for operation and convenient for maintenance, thus, it is an ideal core drilling machine.
Ⅱ、Application Range
XDX-8 can be applied to both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy drilling, it can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring for wire-line coring and top drive drilling.

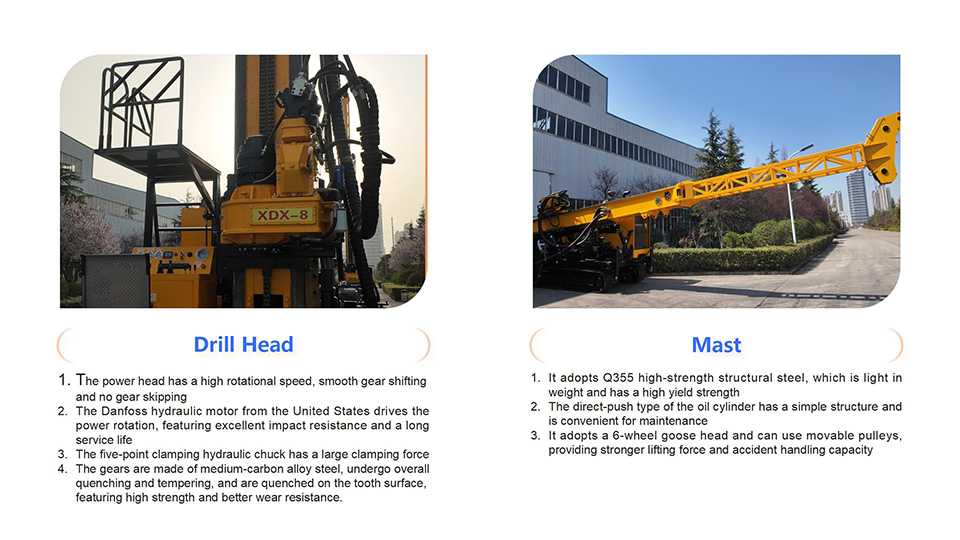

The hydraulic chuck-type power head facilitates the extraction of the drill pipe. It reduces the probability of collapse and falling of the bottom of the hole, repeated breakage of the drill bit, and core blockage. The coring rate is high.
Wireless walking device can be installed optionally.

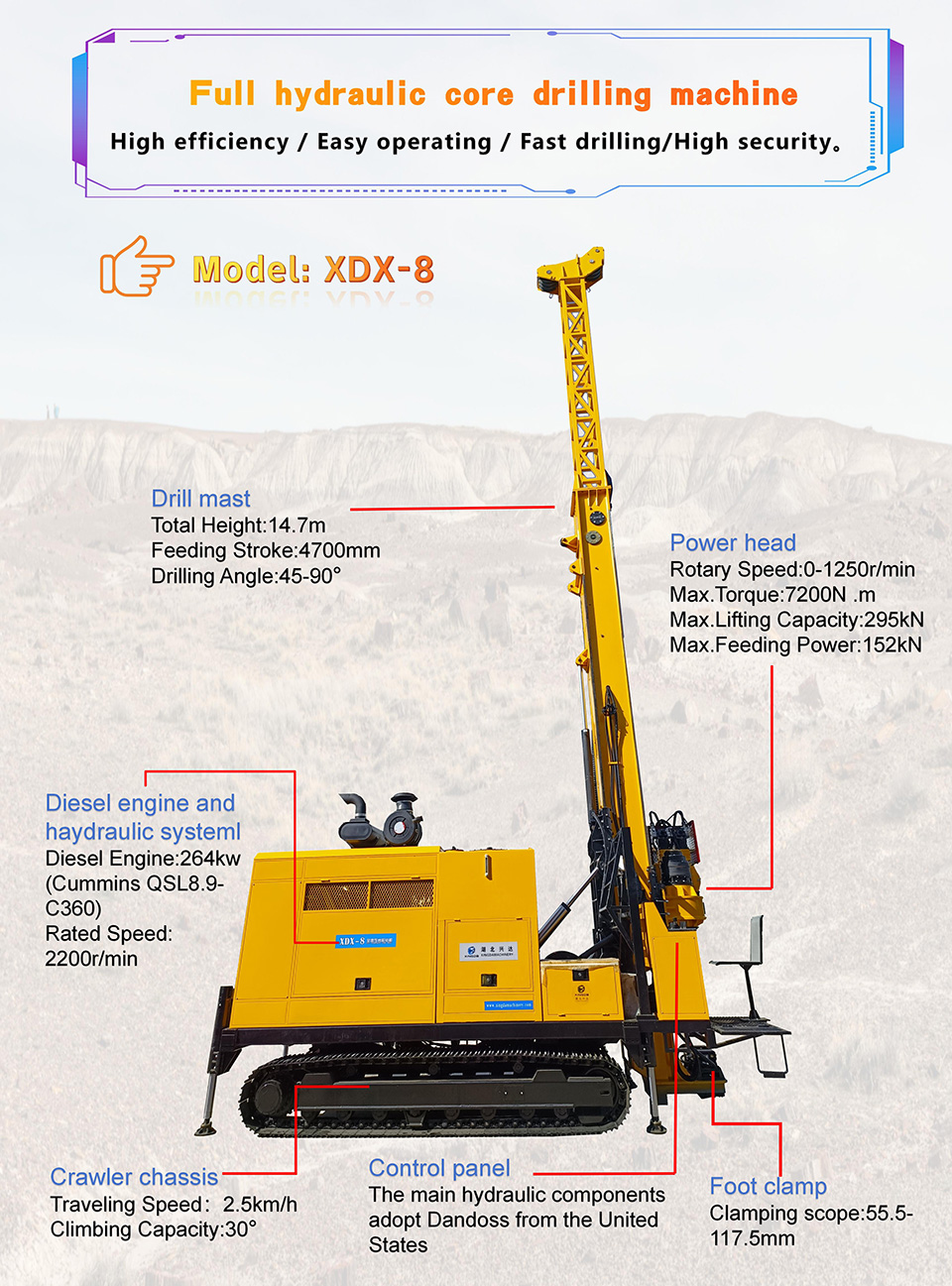

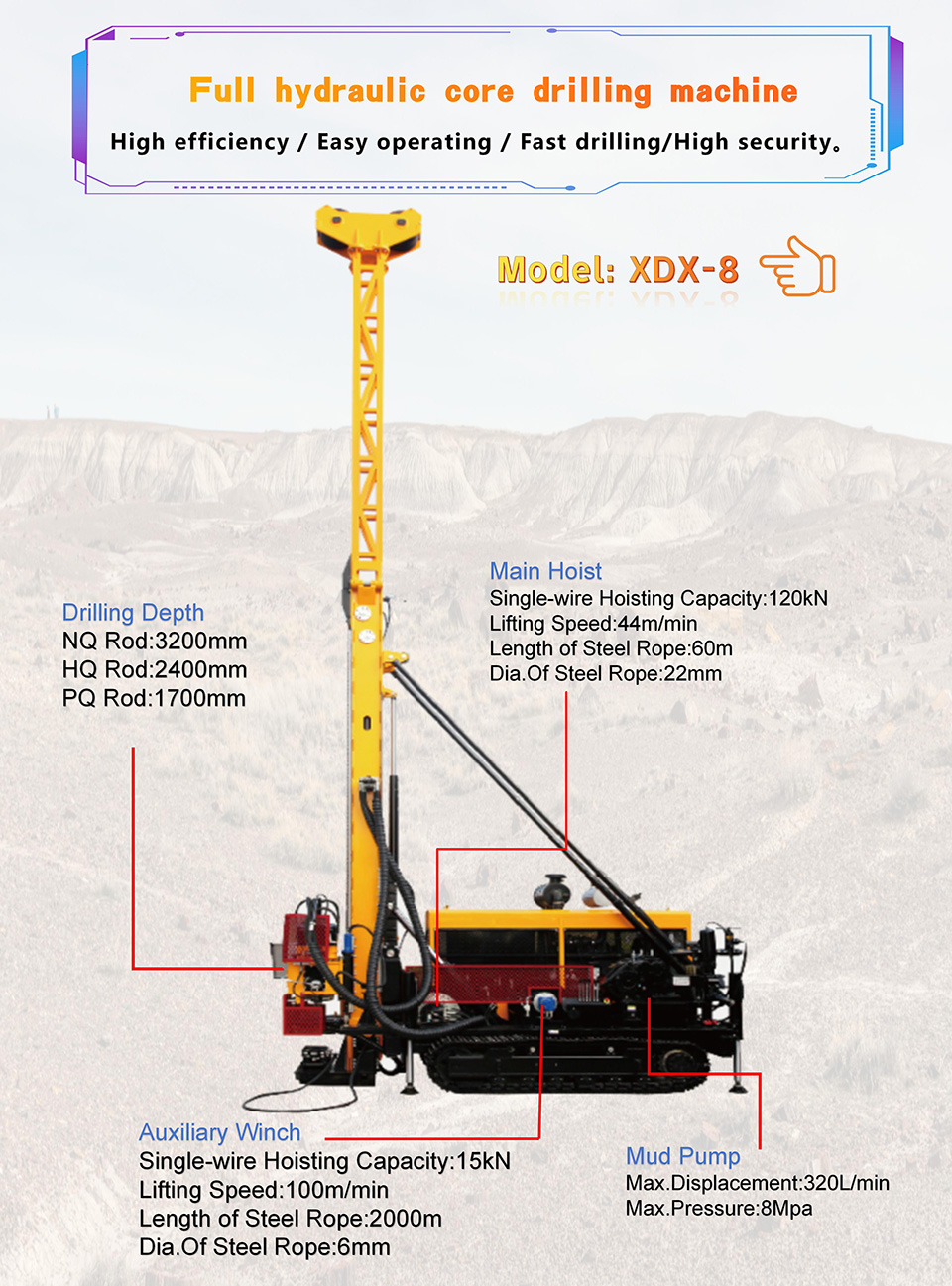

Drill depth: 1700-3600m
Drill diameter: BQ NQ HQ PQ

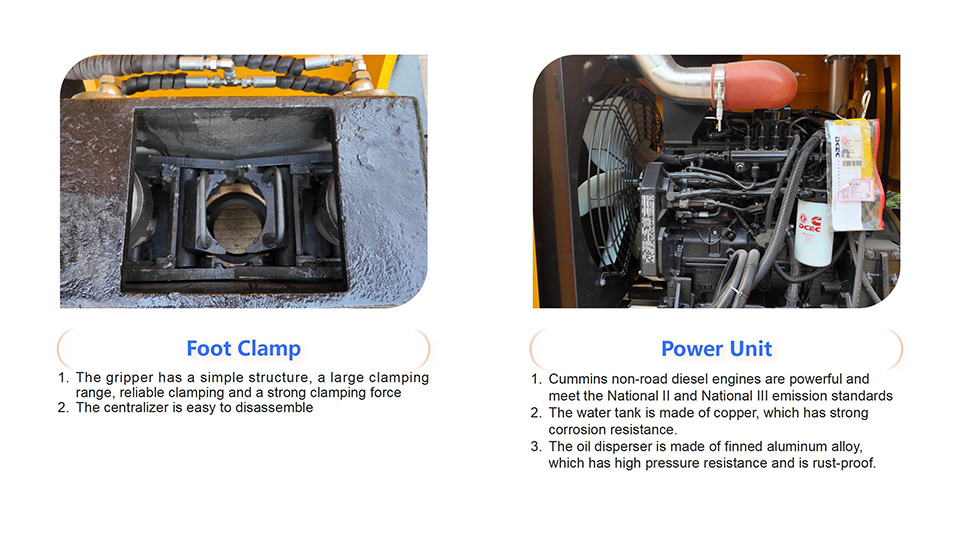

Power: 264kw Cummins diesel engine, 2100r/min
The max. torque of drill head: 8000N.m
Main parts and auxiliary equipment, including engines, diesel engines, hydraulic
pumps,gear reducers,some key valves and hydraulic accessories, are well-known brand products
SO, the failure rate is low and the maintenance is convenient.
Construction Cases
We have several models for you to choose from.
They can all meet your different diameters and depths for exploration.
If you have any needs, please contact us
